50mm

75mm

300kg

500kg

-40℃

+120℃
RoHS Compliant Products
NB For ditails, please refer to the specification above.

POINT

□Easy moving and turning
□Toughened by surface hardening of swivel bracket.
  - rotates smoothly after a long-term fixation under a   heavy load.
□Wheel with grease-packed precision ball bearings.
 - Smooth and silent rolling without subsequent lubrication.
□MCD wheel: Electrically conductive nylon against static   problem.
□Smooth swiveling by twin bearing in the swivel head.

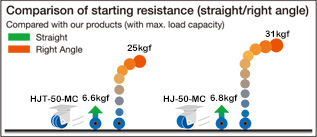

Starting resistance is down to a right angle compared to single wheel caster!
   <Twin wheeled>        <Single wheeled>



HJTB-50U-MC
Swivel with stopper
HJTB-50U-MC
HJT-50B-MC AD-50
Swivel with level adjuster
HJT-50B-MC AD-50

USE EXAMPLE

□For fixed precision machines to be occasionally relocated in a workplace, or moved as production line is rearranged.
□For heavy duty slow-moving carriers.
□evel adjuster (AD-50)
 Separate unit causes no damage to the top plate of caster.
 Bolt size: M16

We'll accept your custom-order. Please feel free to contact us.

WHEELS

JBB…Radial ball bearing

MCモノマーキャスティングナイロン(ブルー)
Monomer-cast nylon/Blue
MCMOモノマーキャスティングナイロン(ブラック)
Monomer-cast nylon/Black
MCD導電性MCナイロン(ブラック)
Conductive monomer cast nylon/Black
Volume resistance 102 to 104Ω•cm*
(*For reference only, not guaranteed.)
NB Bracket color: Zinc plated with Cr III only.
