50mm

75mm

300kg

500kg

-40℃

+120℃
RoHS Compliant Products
NB For ditails, please refer to the specification above.

POINT

□Excellent swiveling performance and extremely
 low starting resistance compared to our compact
 heavy duty castors.
□Wheel with grease-packed precision ball bearings.
- Smooth and silent rolling without subsequent lubrication.
□MCD wheel: Electrically conductive nylon against static  problem.
□Thanks to double bearing (thrust and radial ball bearing)
in the swivel head as standard equipment,
smooth swiveling function even with high load.
□Rotates smoothly after a long-term fixation under a heavy load.

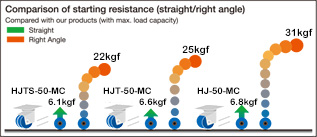

Starting resistance is down to a right angle compared to single wheel caster!
<Smooth>      <Twin wheeled>     <Single wheeled>



HJT-SJ-50U-MC
(M20)
HJTS-SJ-50U-MC

USE EXAMPLE

□For fixed precision machines to be occasionally relocated in a workplace, or moved as production line is rearranged.

□For heavy duty slow-moving carriers.

We'll accept your custom-order.
Please feel free to contact us.

WHEELS

JBB…Radial ball bearing

MCモノマーキャスティングナイロン(ブルー)
Monomer-cast nylon/Blue
MCMOモノマーキャスティングナイロン(ブラック)
Monomer-cast nylon/Black
MCD導電性MCナイロン(ブラック)
Conductive monomer cast nylon/Black
Volume resistance 102 to 104Ω•cm*
(*For reference only, not guaranteed.)
NB Bracket color: Zinc plated with Cr III only.
